Drill bits М50
Brief specifications

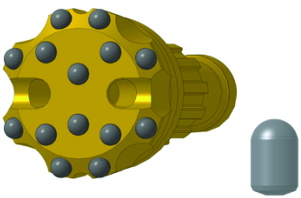

- Image
- Name KNSH-146 M50 MH 875.00
- Nominal drill bit diameter, mm 146
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 9 × Ø18
- Carbide (front) Hemispherical 9 × Ø16
- Flushing holes 3
- Length L, mm 352
- Weight, kg 15.2
KNSH-146 M50 MH 875.00
PART NUMBER: MH 875.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-146 M50 MH 878.00
- Nominal drill bit diameter, mm 146
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 9 × Ø16
- Carbide (front) Hemispherical 9 × Ø14
- Flushing holes 3
- Length L, mm 351
- Weight, kg 15.2
KNSH-146 M50 MH 878.00
PART NUMBER: MH 878.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- Name KNSH-152 M50 MH 545.00
- Nominal drill bit diameter, mm 152
- Gauge angle, deg. 35
- Carbide (outer) Hemispherical 9 × Ø18
- Carbide (front) Hemispherical 9 × Ø16
- Flushing holes 3
- Length L, mm 352
- Weight, kg 16.2
KNSH-152 M50 MH 545.00
PART NUMBER: MH 545.00
Check with the manager for the information about availability and delivery terms after submitting your application
