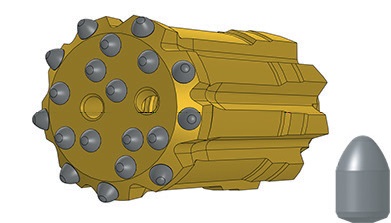

Drill bits for hydraulic rock drills T60 thread
Brief specifications
- Image
- NameKNSH 102-T60.RS MH 279.00
- Nominal drill bit diameter, mm102
- Gauge angle, deg.35
- Carbide (outer)Hemispherical 9 × Ø13
- Carbide (front)Hemispherical 9 × Ø11
- Flushing holes3
- Length, mm224.5
- Weight, kg7.7
KNSH 102-T60.RS MH 279.00
PART NUMBER: MH 279.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH 140-T60.RS MH 294.00
- Nominal drill bit diameter, mm140
- Gauge angle, deg.35
- Carbide (outer)Hemispherical 9 × Ø16
- Carbide (front)Hemispherical 10 × Ø14
- Flushing holes3
- Length, mm225.5
- Weight, kg17
KNSH 140-T60.RS MH 294.00
PART NUMBER: MH 294.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH 102-T60.BRSp MH 291.00
- Nominal drill bit diameter, mm102
- Gauge angle, deg.40
- Carbide (outer)semi-ballistic 9 × Ø13
- Carbide (front)semi-ballistic 10 × Ø12
- Flushing holes2
- Length, mm225.5
- Weight, kg8.1
KNSH 102-T60.BRSp MH 291.00
PART NUMBER: MH 291.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH 102-T60.ARS MH 284.00
- Nominal drill bit diameter, mm102
- Gauge angle, deg.35
- Carbide (outer)Hemispherical 8 × Ø14
- Carbide (front)Hemispherical 4 × Ø14, 3 × Ø12
- Flushing holes4
- Length, mm226
- Weight, kg8.2
KNSH 102-T60.ARS MH 284.00
PART NUMBER: MH 284.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH 115-T60.BRSp MH 297.00
- Nominal drill bit diameter, mm115
- Gauge angle, deg.35
- Carbide (outer)semi-ballistic 9 × Ø14
- Carbide (front)semi-ballistic 9 × Ø12
- Flushing holes3
- Length, mm225.5
- Weight, kg9.8
KNSH 115-T60.BRSp MH 297.00
PART NUMBER: MH 297.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH 115-T60.BRS MH 691.00
- Nominal drill bit diameter, mm115
- Gauge angle, deg.35
- Carbide (outer)Hemispherical 9 × Ø16
- Carbide (front)Hemispherical 6 × Ø13
- Flushing holes3
- Length, mm225.5
- Weight, kg9.7
KNSH 115-T60.BRS MH 691.00
PART NUMBER: MH 691.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH 115-T60.ARS MH 28.00
- Nominal drill bit diameter, mm115
- Gauge angle, deg.35
- Carbide (outer)Hemispherical 8 × Ø14
- Carbide (front)Hemispherical 7 × Ø13
- Flushing holes4
- Length, mm219.5
- Weight, kg9.4
KNSH 115-T60.ARS MH 28.00
PART NUMBER: MH 28.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH 127-T60.ARS MH 22.00
- Nominal drill bit diameter, mm127
- Gauge angle, deg.35
- Carbide (outer)Hemispherical 8 × Ø14
- Carbide (front)Hemispherical 8 × Ø14
- Flushing holes4
- Length, mm220
- Weight, kg12.7
KNSH 127-T60.ARS MH 22.00
PART NUMBER: MH 22.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH 127-T60.ARS MH 274.00
- Nominal drill bit diameter, mm127
- Gauge angle, deg.35
- Carbide (outer)Hemispherical 8 × Ø16
- Carbide (front)Hemispherical 8 × Ø14
- Flushing holes4
- Length, mm220
- Weight, kg13
KNSH 127-T60.ARS MH 274.00
PART NUMBER: MH 274.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH 127-T60.ARSp MH 369.00
- Nominal drill bit diameter, mm127
- Gauge angle, deg.35
- Carbide (outer)semi-ballistic 8 × Ø14
- Carbide (front)semi-ballistic 8 × Ø14
- Flushing holes4
- Length, mm220
- Weight, kg12.6
KNSH 127-T60.ARSp MH 369.00
PART NUMBER: MH 369.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Image
- NameKNSH 127-Т60.RS MH 1116.00
- Nominal drill bit diameter, mm127
- Gauge angle, deg.35
- Carbide (outer)Hemispherical 9 × Ø16
- Carbide (front)Hemispherical 10 × Ø13
- Flushing holes3
- Length, mm219.5
- Weight, kg12.8
KNSH 127-Т60.RS MH 1116.00
PART NUMBER: MH 1116.00
Check with the manager for the information about availability and delivery terms after submitting your application
