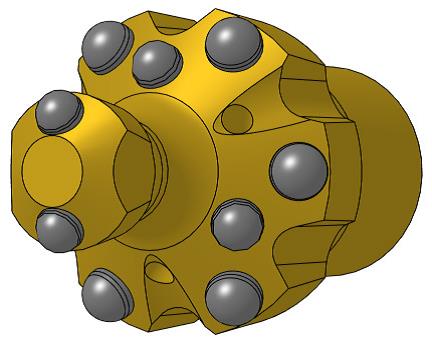

Borehole reamers for hydraulic rock drills with cone cross-section 25.7

Brief specifications

  • Name P64-25.7.S-41 MH 1020.00
  • Nominal drill bit diameter, mm 64
  • Gauge angle, deg. 35
  • Carbide (outer) Hemispherical 6 × Ø11
  • Carbide (front) Hemispherical 3 × Ø10, 2 × Ø9
  • Flushing holes 3
  • Length, mm 112
  • Weight, kg 1.23
Р64-25.7.S-41 MH 1020.00
PART NUMBER: MH 1020.00
Check with the manager for the information about availability and delivery terms after submitting your application
