Borehole reamers for hydraulic rock drills R32 thread

Brief specifications

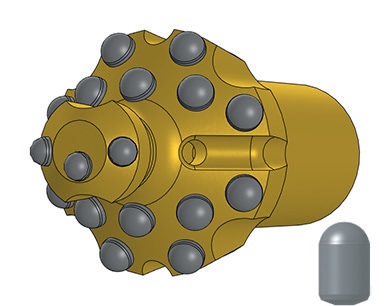

  • Image
  • Name R 89-R32.S-R32 MH 334.00
  • Nominal reamer diameter, mm 89
  • Pilot hole diameter, mm 43...57
  • Gauge angle, deg. 35
  • Carbide (outer) Hemispherical 8 × Ø12
  • Carbide (front) Hemispherical 4 × Ø10
  • Flushing holes 3
  • Length, mm 250.5
  • Weight, kg 4.3
R 89-R32.S-R32 MH 334.00
PART NUMBER: MH 334.00
Check with the manager for the information about availability and delivery terms after submitting your application
  • Image
  • Name R 102-R32.S-R32 MH 335.00
  • Nominal reamer diameter, mm 102
  • Pilot hole diameter, mm 43...57
  • Gauge angle, deg. 35
  • Carbide (outer) Hemispherical 8 × Ø13
  • Carbide (front) Hemispherical 4 × Ø12
  • Flushing holes 3
  • Length, mm 250.5
  • Weight, kg 5.1
R 102-R32.S-R32 MH 335.00
PART NUMBER: MH 335.00
Check with the manager for the information about availability and delivery terms after submitting your application
  • Image
  • Name R 89-R32.S-45 MH 326.00
  • Nominal reamer diameter, mm 89
  • Pilot hole diameter, mm 43...57
  • Gauge angle, deg. 35
  • Carbide (outer) Hemispherical 8 × Ø12
  • Carbide (front) Hemispherical 4 × Ø10
  • Flushing holes 3
  • Length, mm 277
  • Weight, kg 4.5
R 89-R32.S-45 MH 326.00
PART NUMBER: MH 326.00
Check with the manager for the information about availability and delivery terms after submitting your application
  • Image
  • Name R 76-R32.FS MH 333.00
  • Nominal reamer diameter, mm 76
  • Pilot hole diameter, mm 43...57
  • Gauge angle, deg. 35
  • Carbide (outer) Hemispherical 8 × Ø12
  • Carbide (front) Hemispherical 7 × Ø10
  • Flushing holes 4
  • Length, mm 148.5
  • Weight, kg 2.8
R 76-R32.FS MH 333.00
PART NUMBER: MH 333.00
Check with the manager for the information about availability and delivery terms after submitting your application
  • Image
  • Name R 89-R32.FS MH 343.00
  • Nominal reamer diameter, mm 89
  • Pilot hole diameter, mm 43...57
  • Gauge angle, deg. 35
  • Carbide (outer) Hemispherical 8 × Ø13
  • Carbide (front) Hemispherical 7 × Ø13
  • Flushing holes 4
  • Length, mm 150
  • Weight, kg 3.4
R 89-R32.FS MH 343.00
PART NUMBER: MH 343.00
Check with the manager for the information about availability and delivery terms after submitting your application
  • Image
  • Name R 102-R32.FS MH 676.00
  • Nominal reamer diameter, mm 102
  • Pilot hole diameter, mm 43...57
  • Gauge angle, deg. 35
  • Carbide (outer) Hemispherical 9 × Ø13
  • Carbide (front) Hemispherical 6 × Ø12, 3 × Ø10
  • Flushing holes 3
  • Length, mm 155.5
  • Weight, kg 3.6
R 102-R32.FS MH 676.00
PART NUMBER: MH 676.00
Check with the manager for the information about availability and delivery terms after submitting your application
