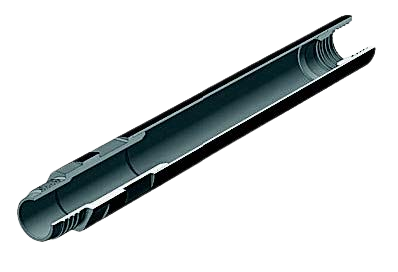

Drill rods for BP-100, BP-85 drilling rigs

Brief specifications

  • NameMH 202.00
  • Diameter, mm76
  • Length, mm1230
  • Coupling (nipple) internal hole diameter, mm30
  • Pipe wall thickness, mm5
  • Size across flats, mm65
  • Connection threadtrapezoidal 56х12 special
  • Weight, kg13.6
BP-76×1230
PART NUMBER: MH 202.00
Check with the manager for the information about availability and delivery terms after submitting your application
  • NameBP-76×820
  • Diameter, mm76
  • Length, mm820
  • Coupling (nipple) internal hole diameter, mm30
  • Pipe wall thickness, mm5
  • Size across flats, mm65
  • Connection threadtrapezoidal 56х12 special
  • Weight, kg10.0
BP-76×820
PART NUMBER: MH 203.00
Check with the manager for the information about availability and delivery terms after submitting your application
  • NameBP-89×1222
  • Diameter, mm89
  • Length, mm1222
  • Coupling (nipple) internal hole diameter, mm53
  • Pipe wall thickness, mm5
  • Size across flats, mm75
  • Connection threadband 72х10 special
  • Weight, kg16.0
BP-89×1222 (reinforced)
PART NUMBER: MH 206.00
Check with the manager for the information about availability and delivery terms after submitting your application
  • NameBP-89×812 (reinforced)
  • Diameter, mm89
  • Length, mm812
  • Coupling (nipple) internal hole diameter, mm53
  • Pipe wall thickness, mm5
  • Size across flats, mm75
  • Connection threadband 72х10 special
  • Weight, kg12.0
BP-89×812 (reinforced)
PART NUMBER: MH 208.00
Check with the manager for the information about availability and delivery terms after submitting your application

Description

Drill rods are an integral part of a drill string of a drilling rig and intended for drilling holes.
