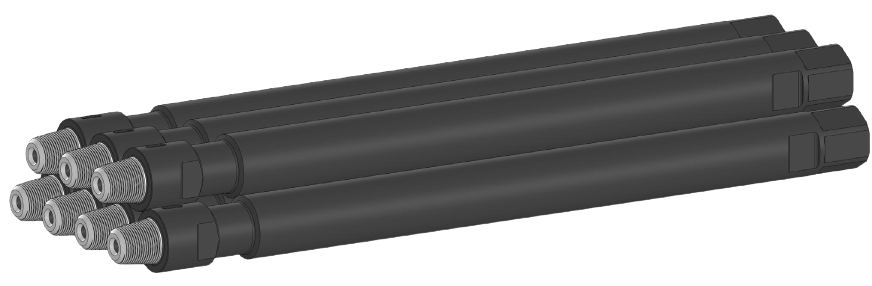

Drill rods for D245S, D50КS, D75КS (Sandvik) drilling rigs
Brief specifications
- Name 114-20-7620-А 3 1/2 (Р.В.) MH 1616.00
- Diameter, mm 114
- Length, mm 7620
- Pipe wall thickness, mm 20
- Size across flats, mm 76
- Slot for wrench width, mm -
- Connection thread 3 1/2” Api Reg
- Weight, kg 367
114-20-7620-А 3 1/2 (Р.В.) MH 1616.00
PART NUMBER: MH 1616.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 140
- Length, mm 9144
- Pipe wall thickness, mm 20
- Size across flats, mm 76
- Slot for wrench width, mm -
- Connection thread 3 1/2” BECO
- Weight, kg 564
140-20-9144-В 3 1/2 (Р.В.) MH 1631.00
PART NUMBER: MH 1631.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 152
- Length, mm 9144
- Pipe wall thickness, mm 20
- Size across flats, mm 102
- Slot for wrench width, mm -
- Connection thread 3 1/2” BECO
- Weight, kg 651
152-20-9144-В 3 1/2 (Р.В.) MH 1602.00
PART NUMBER: MH 1602.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 178
- Length, mm 9144
- Pipe wall thickness, mm 20
- Size across flats, mm 102
- Slot for wrench width, mm -
- Connection thread 4 1/2” BECO
- Weight, kg 787
178-20-9144-В 4 1/2 (Р.В.) MH 1615.00
PART NUMBER: MH 1615.00
Check with the manager for the information about availability and delivery terms after submitting your application
- Diameter, mm 194
- Length, mm 10670
- Pipe wall thickness, mm 25
- Size across flats, mm 152
- Slot for wrench width, mm -
- Connection thread 6" BECO
- Weight, kg 1230
194-25-10670-В 6 (P.B.) MH 1619.00
PART NUMBER: MH 1619.00
Check with the manager for the information about availability and delivery terms after submitting your application
