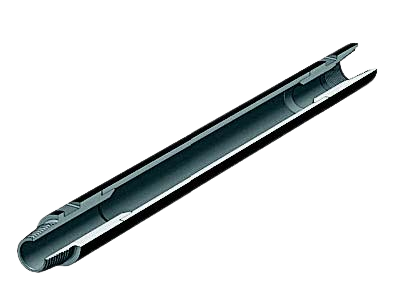

Rods for NKR-100 rigs

Brief specifications

  • Diameter, mm63.5
  • Length, mm1250
  • Coupling (nipple) internal hole diameter, mm33
  • Pipe wall thickness, mm6
  • Size across flats, mm50
  • Connection threadtool joint З-50 GOST 7918-75
  • Weight, kg12.6
NKR-63×1250
PART NUMBER: MH 205.00
To order list
Check with the manager for the information about availability and delivery terms after submitting your application
  • Diameter, mm63.5
  • Length, mm1050
  • Coupling (nipple) internal hole diameter, mm33
  • Pipe wall thickness, mm6
  • Size across flats, mm50
  • Connection threadtool joint З-50 GOST 7918-75
  • Weight, kg11.0
NKR-63×1050
PART NUMBER: MH 207.00
To order list
Check with the manager for the information about availability and delivery terms after submitting your application
  • Diameter, mm63.5
  • Length, mm550
  • Coupling (nipple) internal hole diameter, mm33
  • Pipe wall thickness, mm6
  • Size across flats, mm50
  • Connection threadtool joint З-50 GOST 7918-75
  • Weight, kg6.7
NKR-63×550
PART NUMBER: MH 192.00
To order list
Check with the manager for the information about availability and delivery terms after submitting your application
  • Diameter, mm63.5
  • Length, mm1250
  • Coupling (nipple) internal hole diameter, mm33
  • Pipe wall thickness, mm8
  • Size across flats, mm50
  • Connection threadtool joint З-50 GOST 7918-75
  • Weight, kg15.1
NKR-63×1250 B8
PART NUMBER: MH 193.00
To order list
Check with the manager for the information about availability and delivery terms after submitting your application
  • Diameter, mm63.5
  • Length, mm1050
  • Coupling (nipple) internal hole diameter, mm33
  • Pipe wall thickness, mm8
  • Size across flats, mm50
  • Connection threadtool joint З-50 GOST 7918-75
  • Weight, kg12.9
NKR-63×1050 B8
PART NUMBER: MH 194.00
To order list
Check with the manager for the information about availability and delivery terms after submitting your application
  • Diameter, mm63.5
  • Length, mm1250
  • Coupling (nipple) internal hole diameter, mm35
  • Pipe wall thickness, mm8
  • Size across flats, mm50
  • Connection threadtool joint З-50 GOST 7918-75
  • Weight, kg12.4
NKR-63×1250 A
PART NUMBER: MH 195.00
To order list
Check with the manager for the information about availability and delivery terms after submitting your application
  • Diameter, mm63.5
  • Length, mm1250
  • Coupling (nipple) internal hole diameter, mm35
  • Pipe wall thickness, mm8
  • Size across flats, mm50
  • Connection threadtool joint З-50 GOST 7918-75
  • Weight, kg14.9
NKR-63×1250 A8
PART NUMBER: MH 196.00
To order list
Check with the manager for the information about availability and delivery terms after submitting your application
