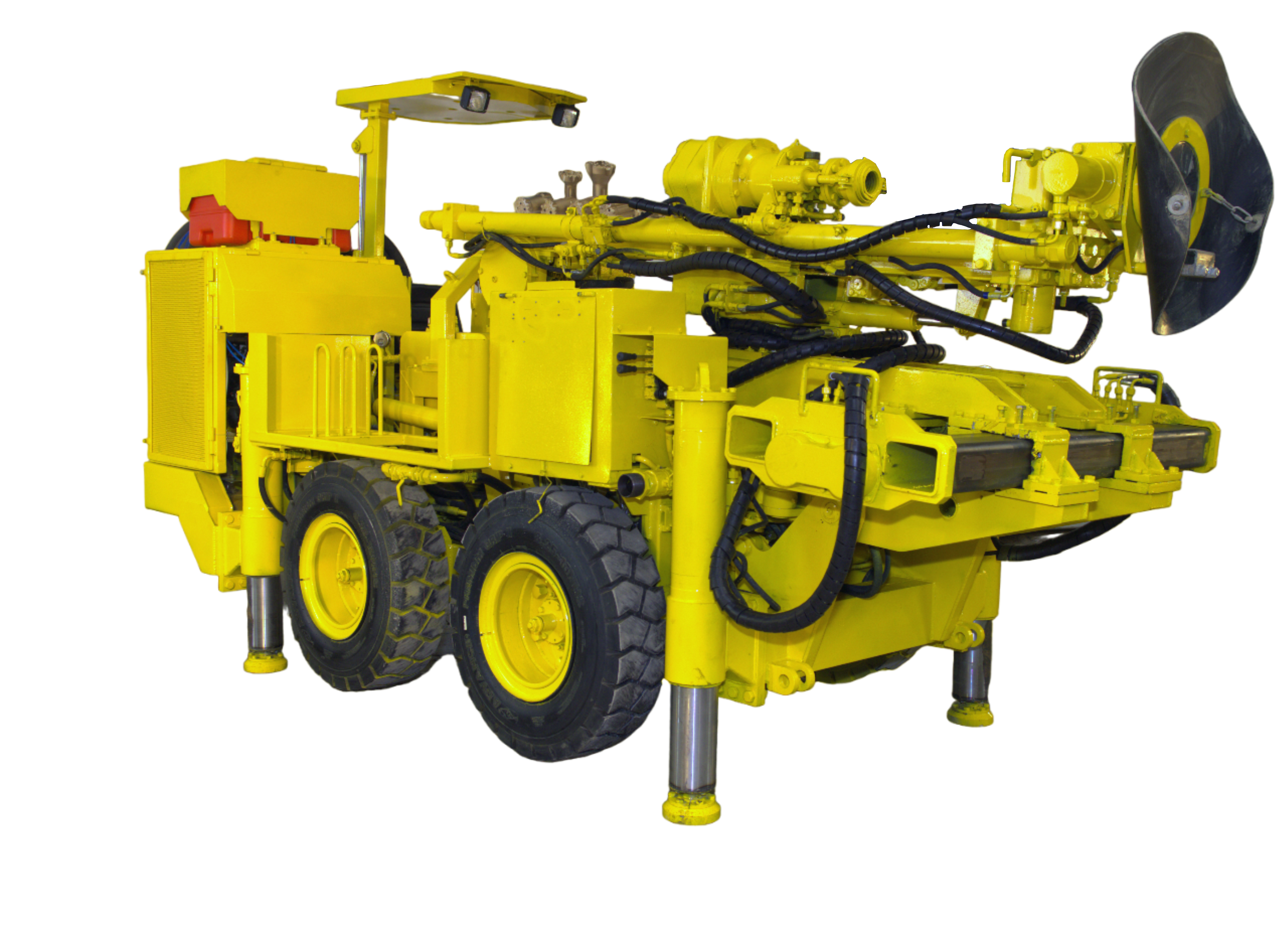

BP-100C drilling rig
Brief specifications
- Minimum drift size (width × height), m2.7 × 2.7
- Minimum drift size (width × height), m4.1 × 4.1 (4.5 × 4.5)*
- Drilling diameter, mm85**, 105, 110, 130
- Drilling depth, m, down to100
- Drill string diameter, mm100
- Drilling direction: circular fan and parallel vertical and inclined holes(-20°...+20°) 0…360°
- Maximum travel speed, km/h4.0
- Maximum climbing angle12°
- Operating compressed air pressure, MPa (kgf/cm2)0.4 ÷ 0.5 (4 ÷ 5)
- Water line operating pressure, MPa (kgf/cm2)0.6…1.2 (6…12)
- Water flow rate, l/min10–18
- Rig weight (without the rods and spare parts), kg3800
BP-100C drilling rig
PART NUMBER:
Check with the manager for the information about availability and delivery terms after submitting your application
Description
BP-100s drilling rig with a diesel engine for moving and parallel movement of the feeder for drilling at low or high compressed air pressure.
The machine is designed for drilling explosive wells in the underground mining of minerals and auxiliary wells (ventilation, laying for laying cables, pipelines, etc.) with a diameter of 85, 105, 110, 130, 160 mm in rocks and ores with a strength coefficient f = 6 ...20 on the scale of M.M. Protodiakonov submersible pneumatic hammers operating on The energy of compressed air is both low pressure (standard) 0.4-0.63 MPa (4.0-6.3 kgf/cm2) and high 1.5-2.5 MPa (15-25 kgf/cm2).
