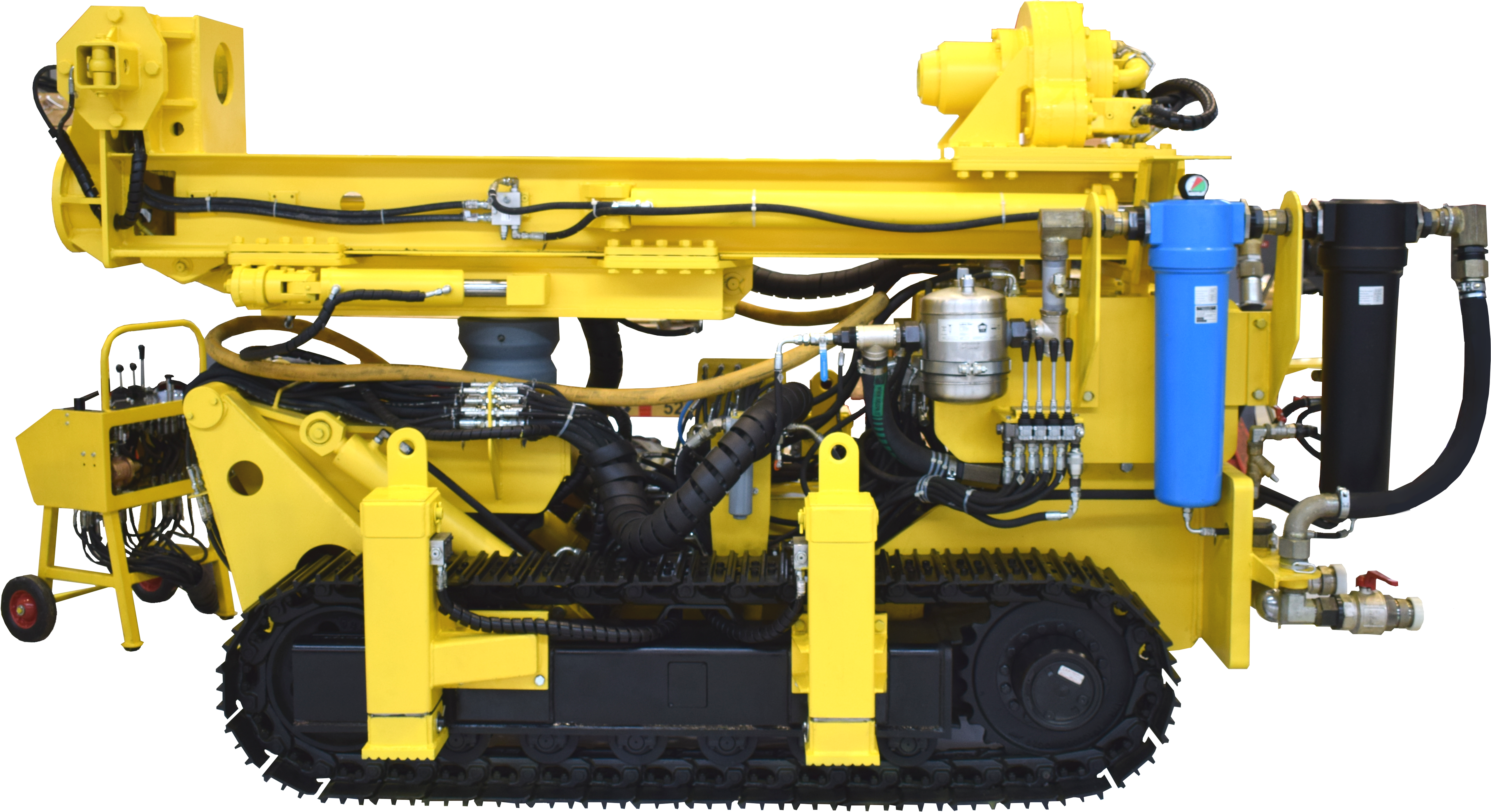

BP-160С drilling rig
Brief specifications
- Minimum drift size (width × height), м3.5 × 3.5
- Drilling diameter, mm130...178
- Hole reaming diameter, mm254…305
- Drilling depth down (up), m160 (50)
- Drill string diameter, mm114
- Drilling direction: Circular fan and parallel vertical and inclined holes(-20°...+20°) 0…360°
- Maximum travel speed, km/h1.2
- Maximum climbing angle20°
- Operating compressed air pressure (drilling), MPa (kgf/cm2)1.5...2.5 (15...25)
- Operating compressed air pressure (pneumohydraulic power unit), MPa (kgf/cm2)0.4...0.6 (4...6)
- Operating pressure in the booster pump water line, MPa (kgf/cm2)2.5...3.0 (25...30)
- Water flow rate, l/min10...12
- Rig weight, kg6200
BP-160С drilling rig
PART NUMBER:
Check with the manager for the information about availability and delivery terms after submitting your application
Description
The machine is designed for drilling and expanding blast wells in the underground mining of minerals and auxiliary wells (ventilation, laying for laying cables, pipelines, etc.) with a diameter of 130-1305 mm in rocks with a strength coefficient f = 6...20 on the M.M. Protodiakonov scale with submersible pneumatic hammers powered by high-pressure compressed air — 1.5 — 2.5 MPa (15-25 kgf/cm2).
